Oru
Oru explores how a light can transform from a flat object into a functional lamp. Inspired by origami and portability of 3d structures, we set out to create a light that remains unobtrusive until needed.
iteration + play
= *discovery*
We use paper as a means to play with 3D form, transformation, and manipulation of light.
By experimenting with folds in order to create a form that can go from flat to a 90 degree angled structure, we were able to create a paper form that resembles a table lamp.

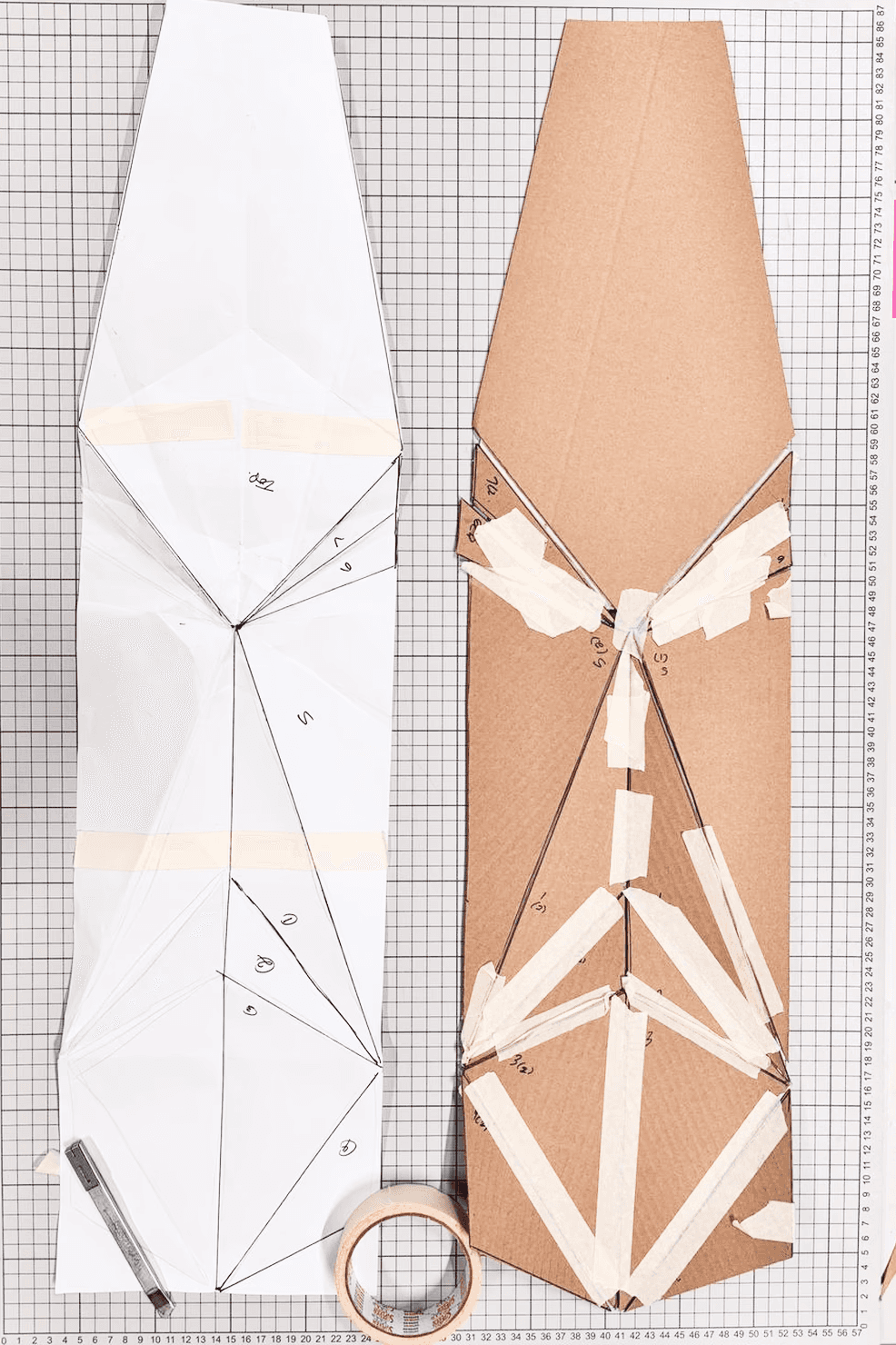

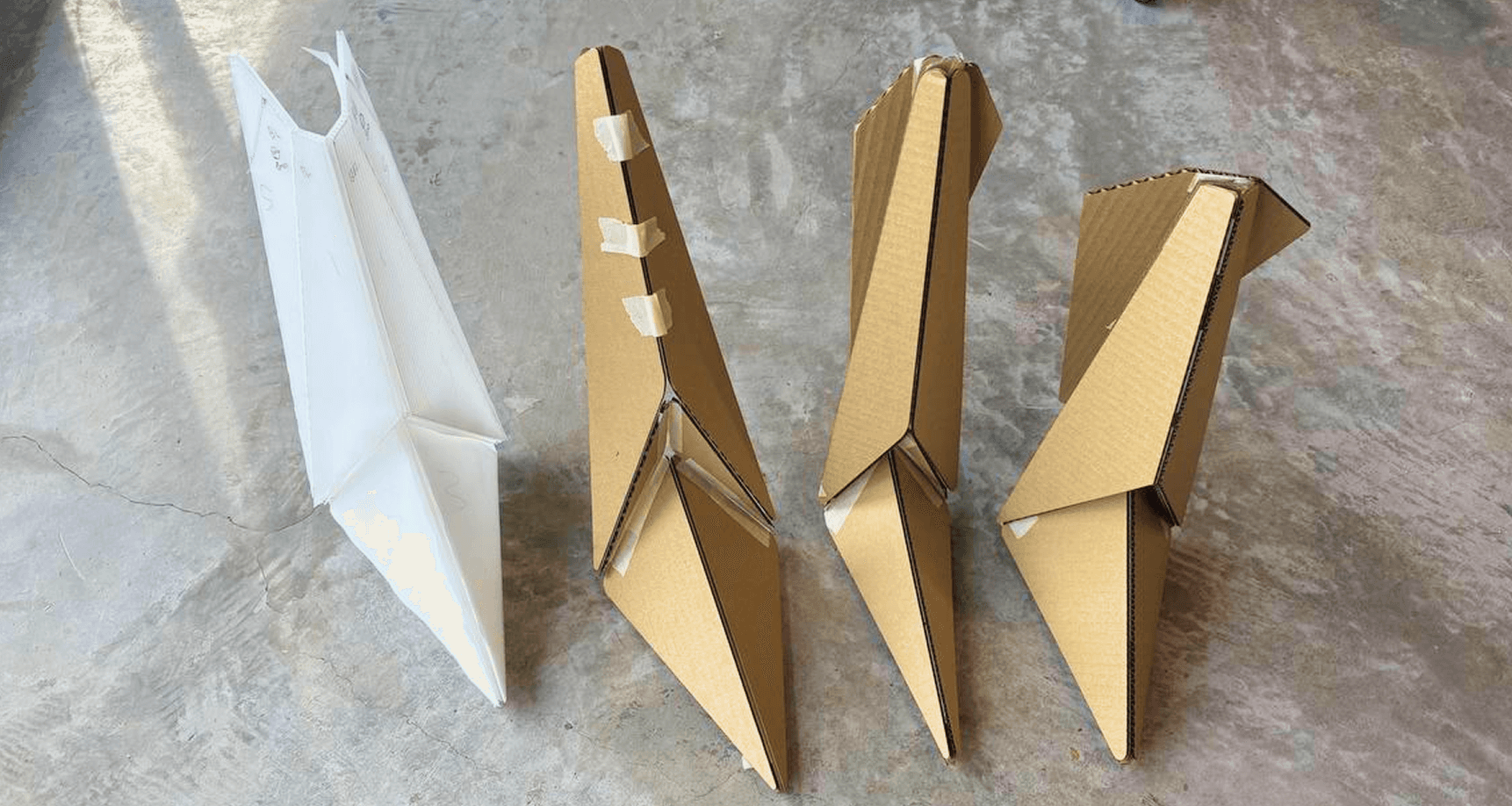

from paper prototype —> cardboard proof of concept
The challenge became recreating a paper behavior into a durable object. By creating cardboard prototypes using rigid triangular shapes and tape hinges, we refined proportions, stability, and the functionality.
drawing inspiration for material experimentation.
This is far from the first origami-inspired transforming structure on market, and because of this, we could draw material and structural inspiration from phone cases, installations and fashion, but also learn where we might be able to push boundaries of the current category.
NYLON WAS A DEAD END, WE HAD TO PIVOT.
Nylon fabric initially seemed like the answer, providing smooth articulation and unexpectedly softening the light around the acrylic. However, every adhesive solution involved compromised the finish quality because of inconsistent application.
returning to tape.
When pedaling back from, we found a bi-directional filament tape that could replace the masking tape in our prototypes and be a durable connection material. This led us to our final exploration: what if the tape could be applied as one piece over the entire surface?
proof of concept…

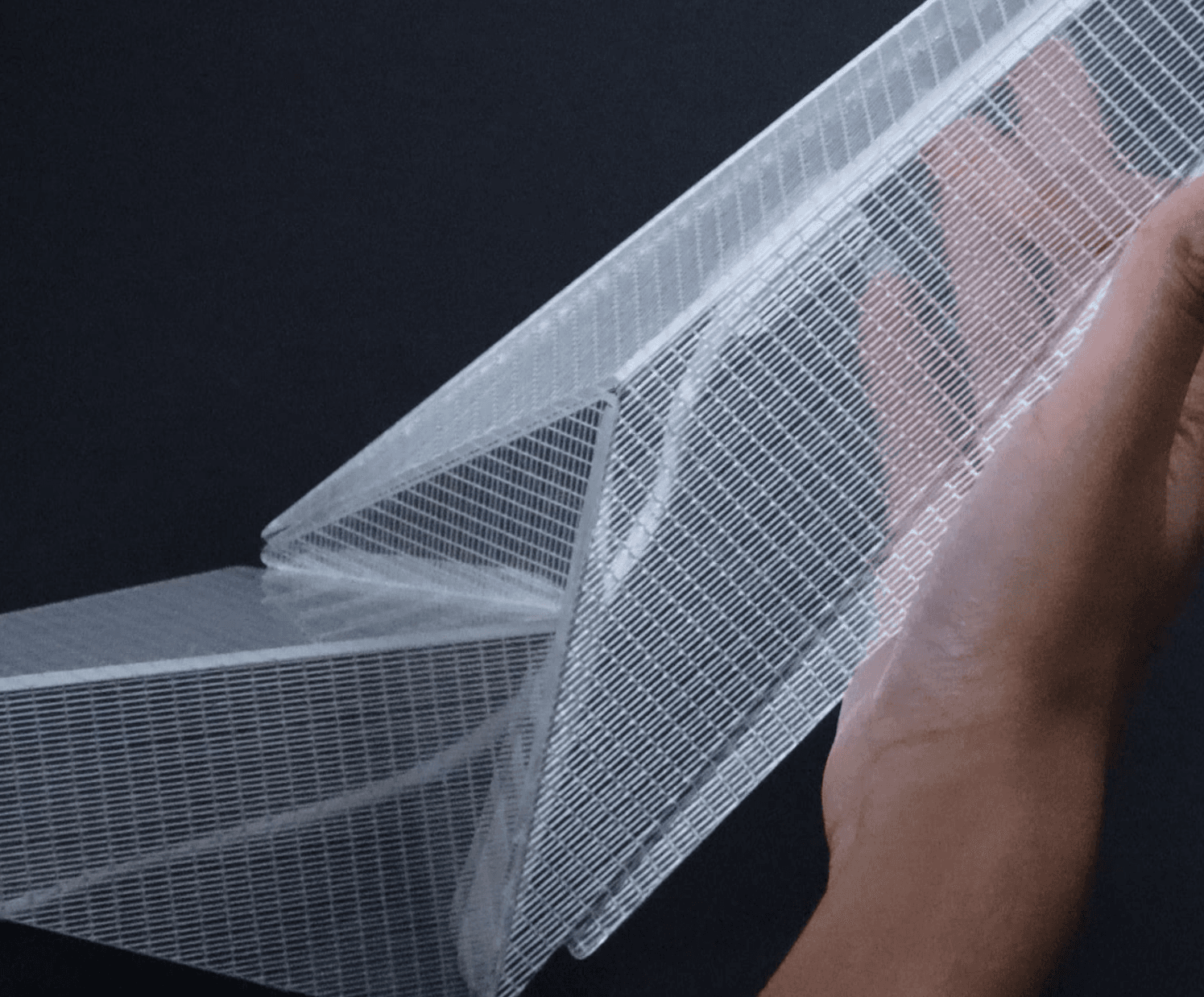

I bookmatched together strips of 15mm tape to create a consistent material, and then transferred onto the acrylic with wax paper. The overall look had a seamless finish.
15 mm -> 150 mm
bi-directional filament tape

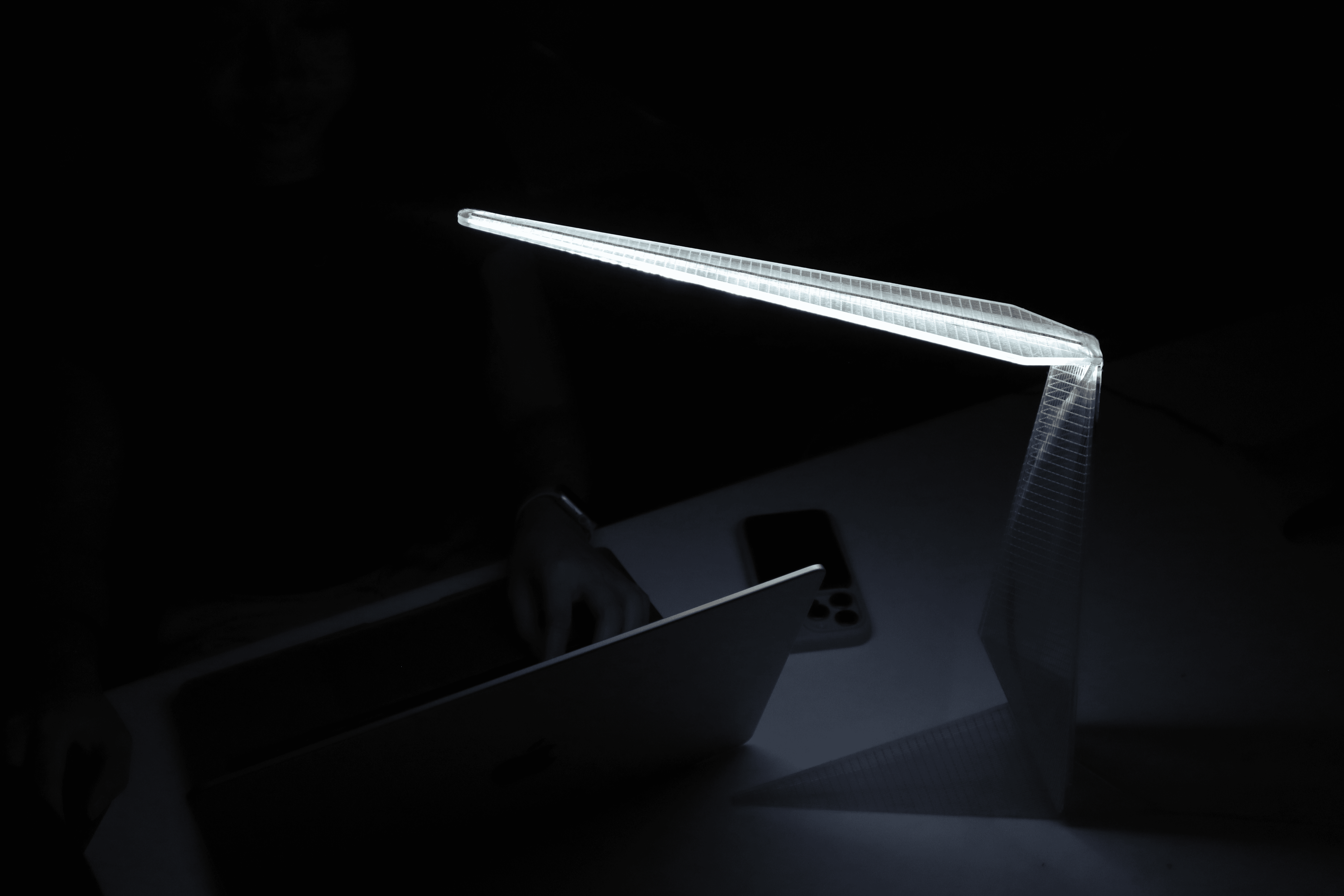

Final model.
A full circle solution—from taped paper prototypes to a tape-based final construction
